Spring Boot启动过程源码分析

Posted on 2024-04-01 In Spring , Spring Boot

[toc]

Application实例化

Spring Boot的启动始于：

1	SpringApplication.run(DemoApplication.class, args);

相应实现：

1
2
3

public static ConfigurableApplicationContext run(Object source, String... args) {
	return run(new Object[] { source }, args);
}

1
2
3

public static ConfigurableApplicationContext run(Object[] sources, String[] args) {
	return new SpringApplication(sources).run(args);
}

它实际上会构造一个SpringApplication的实例，然后运行它的run方法：

1
2
3

public SpringApplication(Object... sources) {
	initialize(sources);
}

private void initialize(Object[] sources) {
    if (sources != null && sources.length > 0) {
        this.sources.addAll(Arrays.asList(sources));
    }
    this.webEnvironment = deduceWebEnvironment();
    setInitializers((Collection) getSpringFactoriesInstances(
        ApplicationContextInitializer.class));
    setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
    this.mainApplicationClass = deduceMainApplicationClass();
}

deduceWebEnvironment()是推断应用类型是Standard还是Web，方法是在当类路径中找是否存在”javax.servlet.Servlet”,”org.springframework.web.context.ConfigurableWebApplicationContext”的类来判断的。

然后设置初始化器，会从类路径的META-INF/spring.factories处读取相应配置文件，读取配置文件中Key为：org.springframework.context.ApplicationContextInitializer的value。以spring-boot这个包为例，它的META-INF/spring.factories部分定义如下所示：

# Application Context Initializers
org.springframework.context.ApplicationContextInitializer=\
org.springframework.boot.context.ConfigurationWarningsApplicationContextInitializer,\
org.springframework.boot.context.ContextIdApplicationContextInitializer,\
org.springframework.boot.context.config.DelegatingApplicationContextInitializer,\
org.springframework.boot.context.embedded.ServerPortInfoApplicationContextInitializer

因此这几个类名会实例化出来放在SpringApplication 的initializers中。

之后设置监听器，同上读取配置文件中Key为：org.springframework.context. ApplicationListener的value，然后加载实例化后，设置在listeners中。

# Application Listeners
org.springframework.context.ApplicationListener=\
org.springframework.boot.ClearCachesApplicationListener,\
org.springframework.boot.builder.ParentContextCloserApplicationListener,\
org.springframework.boot.context.FileEncodingApplicationListener,\
org.springframework.boot.context.config.AnsiOutputApplicationListener,\
org.springframework.boot.context.config.ConfigFileApplicationListener,\
org.springframework.boot.context.config.DelegatingApplicationListener,\
org.springframework.boot.liquibase.LiquibaseServiceLocatorApplicationListener,\
org.springframework.boot.logging.ClasspathLoggingApplicationListener,\
org.springframework.boot.logging.LoggingApplicationListener

spring boot支持的事件监听类型有如下四种：ApplicationStartedEvent、ApplicationEnvironmentPreparedEvent、ApplicationPreparedEvent、ApplicationFailedEvent。

然后设置mainApplicationClass:

private Class<?> deduceMainApplicationClass() {
	try {
		StackTraceElement[] stackTrace = new RuntimeException().getStackTrace();
		for (StackTraceElement stackTraceElement : stackTrace) {
			if ("main".equals(stackTraceElement.getMethodName())) {
				return Class.forName(stackTraceElement.getClassName());
			}
		}
	}
	catch (ClassNotFoundException ex) {
		// Swallow and continue
	}
	return null;
}

它通过构造一个运行时异常，通过异常栈中方法名为main的栈帧来得到入口类的名字。至此，对于SpringApplication实例的初始化过程就结束了。

Application#run()

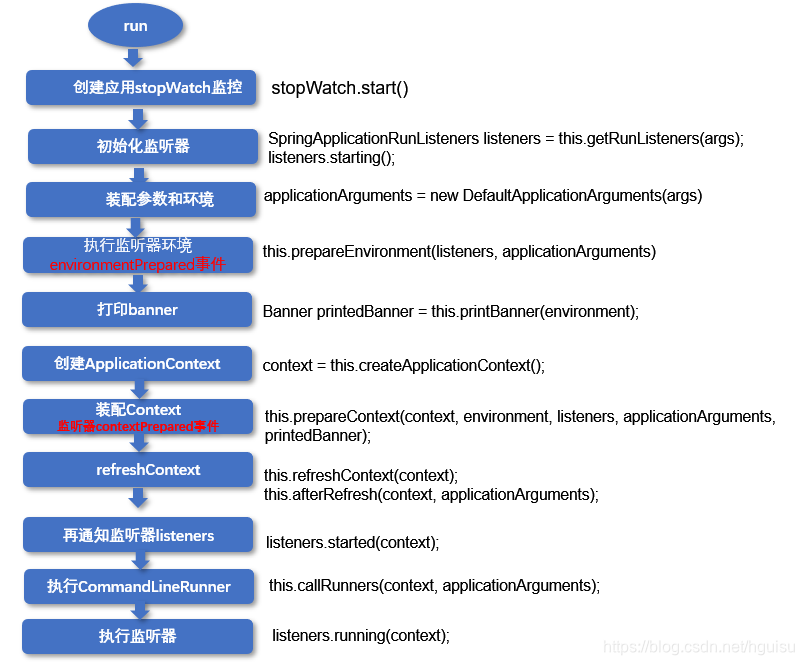

完成了实例化，下面开始调用run方法。流程图如下：

源码：

public ConfigurableApplicationContext run(String... args) {
    // 计时工具
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();

    ConfigurableApplicationContext context = null;
    FailureAnalyzers analyzers = null;
    // 设置java.awt.headless系统属性为true - 没有图形化界面
    configureHeadlessProperty();

    SpringApplicationRunListeners listeners = getRunListeners(args);
    listeners.starting();
    try {
        ApplicationArguments applicationArguments = new DefaultApplicationArguments(
            args);
        ConfigurableEnvironment environment = prepareEnvironment(listeners,
                                                                 applicationArguments);

        // Banner打印器，就是启动Spring Boot的时候打印在console上的
        Banner printedBanner = printBanner(environment);

        // 创建Spring上下文
        context = createApplicationContext();
        analyzers = new FailureAnalyzers(context);

        // Spring上下文前置处理
        prepareContext(context, environment, listeners, applicationArguments,
                       printedBanner);

        refreshContext(context);

        // Spring上下文后置处理
        afterRefresh(context, applicationArguments);
        listeners.finished(context, null);
        stopWatch.stop();
        if (this.logStartupInfo) {
            new StartupInfoLogger(this.mainApplicationClass)
                .logStarted(getApplicationLog(), stopWatch);
        }
        return context;
    }
    catch (Throwable ex) {
        handleRunFailure(context, listeners, analyzers, ex);
        throw new IllegalStateException(ex);
    }
}

第23行createApplicationContext()即创建Spring的主要组件ApplicationContext，对于Web应用，上ApplicationContext就是AnnotationConfigEmbeddedWebApplicationContext。

第30行refreshContext(context)即刷新ApplicationContext：

private void refreshContext(ConfigurableApplicationContext context) {
    refresh(context);
    if (this.registerShutdownHook) {
        try {
            context.registerShutdownHook();
        }
        catch (AccessControlException ex) {
            // Not allowed in some environments.
        }
    }
}

最终会调用到我们熟知的AbstractApplicationContext的refresh()方法。

第33行上下文后置处理afterRefresh()方法：

protected void afterRefresh(ConfigurableApplicationContext context,
                            ApplicationArguments args) {
    callRunners(context, args);
}

private void callRunners(ApplicationContext context, ApplicationArguments args) {
    List<Object> runners = new ArrayList<Object>();
    runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
    runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
    AnnotationAwareOrderComparator.sort(runners);
    for (Object runner : new LinkedHashSet<Object>(runners)) {
        if (runner instanceof ApplicationRunner) {
            callRunner((ApplicationRunner) runner, args);
        }
        if (runner instanceof CommandLineRunner) {
            callRunner((CommandLineRunner) runner, args);
        }
    }
}

所谓的后置操作，就是在容器完成刷新后，依次调用注册的Runners。Runners可以是两个接口的实现类：org.springframework.boot.ApplicationRunner与org.springframework.boot.CommandLineRunner。

监听器Listener

再来看监听器是如何工作的呢？还是看上面ConfigurableApplicationContext#run()方法中第11行getRunListeners()，该方法源码如下：

private SpringApplicationRunListeners getRunListeners(String[] args) {
	Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };
	return new SpringApplicationRunListeners(logger, getSpringFactoriesInstances(
			SpringApplicationRunListener.class, types, this, args));
}

这里的getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args)，会在META-INF/spring.factories中找到：

1
2
3

# Run Listeners
org.springframework.boot.SpringApplicationRunListener=\
org.springframework.boot.context.event.EventPublishingRunListener

getSpringFactoriesInstances()返回了EventPublishingRunListener实例。EventPublishingRunListener的构造方法如下：

public EventPublishingRunListener(SpringApplication application, String[] args) {
    this.application = application;
    this.args = args;
    this.initialMulticaster = new SimpleApplicationEventMulticaster();
    for (ApplicationListener<?> listener : application.getListeners()) {
        this.initialMulticaster.addApplicationListener(listener);
    }
}

构造方法中将SpringApplication中的监听器添加到了SimpleApplicationEventMulticaster的实例multicaster中。

接下来ConfigurableApplicationContext.run()方法中调用listeners.starting()方法，来看下：

public void starting() {
	for (SpringApplicationRunListener listener : this.listeners) {
		listener.starting();
	}
}

@Override
@SuppressWarnings("deprecation")
public void starting() {
	this.initialMulticaster
			.multicastEvent(new ApplicationStartedEvent(this.application, this.args));
}

在EventPublishingRunListener.starting()方法中，先创建一个ApplicationStartedEvent事件，将this.application传递进去，因此使用ApplicationStartedEvent监听器时可以获取SpringApplication实例。
SimpleApplicationEventMulticaster.multicastEvent():

@Override
public void multicastEvent(ApplicationEvent event) {
	multicastEvent(event, resolveDefaultEventType(event));
}

@Override
public void multicastEvent(final ApplicationEvent event, ResolvableType eventType) {
	ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
	for (final ApplicationListener<?> listener : getApplicationListeners(event, type)) {
		Executor executor = getTaskExecutor();
		if (executor != null) {
			executor.execute(new Runnable() {
				@Override
				public void run() {
					invokeListener(listener, event);
				}
			});
		}
		else {
			invokeListener(listener, event);
		}
	}
}

getApplicationListeners()获取对应ApplicationEvent的listener，获取完指定事件对应监听器后，通过Executor执行一个子线程执行invokeListener(listener, event)，该函数会调用监听器listener.onApplicationEvent(event)方法。
在SpringApplication.run()方法执行中，依次调用了listeners.starting()、listeners.environmentPrepared(environment)、listeners.contextLoaded(context)分别对应了ApplicationStartedEvent、ApplicationEnvironmentPreparedEvent、ApplicationPreparedEvent事件。

自定义启动扩展

基于上面的了解，我们就可以在Spring Boot启动添加自定义的初始化器、监听器等。

添加定制化的初始化器：

public static void main(String[] args) {

    // 创建SpringApplication的实例
    SpringApplication app = new SpringApplication(Application.class);

    // 添加定制的初始化器
    app.addInitializers(new CustomApplicationContextInitializer());

    // 执行SpringApplication实例的run方法
    app.run(args);
}

public class CustomApplicationContextInitializer implements ApplicationContextInitializer {
    private static final Logger LOGGER = LoggerFactory.getLogger(CustomApplicationContextInitializer.class);

    @Override
    public void initialize(ConfigurableApplicationContext applicationContext) {
        LOGGER.info("自定义的初始化器的initialize方法被执行了");
    }
}

点击并拖拽以移动

添加定制化的监听器：

1	app.addListeners(new CustomApplicationListener());

public class CustomApplicationListener implements ApplicationListener {
    private static final Logger LOGGER = LoggerFactory.getLogger(CustomApplicationListener.class);

    public void onApplicationEvent(ApplicationEvent event) {
        // 监听ApplicationStartingEvent
        if (event instanceof ApplicationStartedEvent) {
            logInfo("ApplicationStartedEvent listened");
        }

        // 监听ApplicationEnvironmentPreparedEvent
        else if (event instanceof ApplicationEnvironmentPreparedEvent) {
            logInfo("ApplicationEnvironmentPreparedEvent listened");
        }

        // 监听ApplicationPreparedEvent
        else if (event instanceof ApplicationPreparedEvent) {
            logInfo("ApplicationPreparedEvent listened");
        }


        // 监听ApplicationReadyEvent
        else if (event instanceof ApplicationReadyEvent) {
            logInfo("ApplicationReadyEvent listened");
        }

        // 监听ApplicationFailedEvent
        else if (event instanceof ApplicationFailedEvent) {
            logInfo("ApplicationFailedEvent listened");
        }
    }

    private void logInfo(String log) {
        if (LOGGER.isInfoEnabled()) {
            LOGGER.info(log);
        }
    }
}

点击并拖拽以移动

添加定制化的后置Runners：

@Component
@Order(2)
public class CustomApplicationRunner implements ApplicationRunner {
  private static final Logger LOGGER = LoggerFactory.getLogger(CustomApplicationRunner.class);

  @Override
  public void run(ApplicationArguments arg) {
      if (LOGGER.isInfoEnabled()) {
          LOGGER.info("自定义ApplicationRunner运行了");
      }
  }
}

@Component
@Order(1)
public class CustomCommandLineRunner implements CommandLineRunner {
  private static final Logger LOGGER = LoggerFactory.getLogger(CustomCommandLineRunner.class);

  @Override
  public void run(String... strings) throws Exception {
      if (LOGGER.isInfoEnabled()) {
          LOGGER.info("自定义CommandLineRunner运行了");
      }
  }
}

自定义Runner的添加方式和上述的初始化器以及监听器有点不同，就是Runners直接通过@Component注解添加即可，借助于包扫描机制，它们会被注册到容器中。至于它们运行的顺序，则可以通过上述的@Order注解来完成标注，数值越小的Runner优先级越高，因为源码中有AnnotationAwareOrderComparator.sort(runners)，因此上面代码中，CustomCommandLineRunner将先于CustomApplicationRunner被执行。

扩展的方式也很简单，看源代码就清楚该怎么扩展了：

private Banner printBanner(ConfigurableEnvironment environment) {
	if (this.bannerMode == Banner.Mode.OFF) {
		return null;
	}
	ResourceLoader resourceLoader = this.resourceLoader != null ? this.resourceLoader
			: new DefaultResourceLoader(getClassLoader());
	SpringApplicationBannerPrinter bannerPrinter = new SpringApplicationBannerPrinter(
			resourceLoader, this.banner);
	if (this.bannerMode == Mode.LOG) {
		return bannerPrinter.print(environment, this.mainApplicationClass, logger);
	}
	return bannerPrinter.print(environment, this.mainApplicationClass, System.out);
}

点击并拖拽以移动

转载自：
http://blog.csdn.net/dm_vincent/article/details/76735888
http://blog.csdn.net/dm_vincent/article/details/77151122
